Casing aluminium Marine Grade
Rheem IQ - Intelligently monitor all critical temperature and pressure points
High COP up to 5.2
Titanium Heat Exchanger options to guard against aggresive water quality
Rheem Cote
anti corrosion treatment to provide ultra protection to evaporator
Rheem Cote
anti corrosion treatment to provide ultra protection to evaporator
Marine Grade aluminium case
Rheem IQ - intelligently monitor all critical temperature and pressure points
High COP up to 5.2
Titanium Heat Exchanger options to guard against aggresive water quality



what is heat pump


Air to Water
heat pump


An air-to-water heat pump absorbs heat from the surrounding air and transfers it into the water line. Heat pumps transfer heat by circulating refrigerants through a cycle of evaporation and condensation, basically the reversed process of a household refrigerator where the heat energy produced is used for water heating and the by-product is cold air. This system yields a relatively high Coefficient of Performance (COP) in ASEAN countries having a minimum of 25°C ambient temperature, requiring less amount of electricity to generate heat for hot water use.





/




what is heat pump


Water to Water
heat pump


A water-to-water heat pump typically transfers heat from industrial water. In normal installations, water sources can be from the chiller side or cooling tower side of the building's centralized air cooling system that provides a relatively constant heat source with which the heat pump utilizes the waste heat energy from other equipment and converts it to a heat source to generate heat more efficiently for hot water use.




/



what is heat pump

Application

  • Hotel

  • Pool

  • Apartment

  • Kitchen

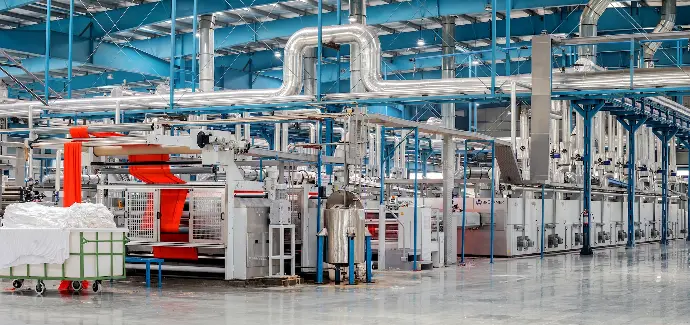

  • Processing Plant

  • Laundromat


white washer and dryer laundry centers on white floor tiles
turned on Hotel LED signage
white and red train in a train station
green leafed plant near white concrete post
low angle photo of high rise apartment building
men's blue T-shirt





product features


Long-Lasting and Reliable Heat Pumps


with nearly 100 years of hot water experience, Rheem knows a thing or two about designing for your needs. Our Rheem Thermal's features and durability ensures customers businesses stay up and running.












Build To Last Longer



  • Manufactured In Australia
  • Marine Grade aluminium case
  • Rheem Cote anti-corrosion treatment to provide ultra-protection to evaporator
  • Isolated compressor compartment to avoid contact with rain water
  • Titanium heat exchanger options to guard against aggressive water quality





High Efficiency

​

  • High COP up to 5.2
  • High EER up to 4.2
  • Oversized evaporator for maximum heat capture
  • Intelligent circulation pump control





Easy Integration

​

  • Intelligent weatherproof controller with LED display
  • Easy temp and pressure monitoring
  • Multiple operation scheduler control
  • High level interfacing
  • for BMS – BACnet - Modbus

Rheem IQ

Intelligently monitor all critical temperature and pressure points





Multiple Safety Protection And Error Codes Indication

Better Energy Cost Savings
High Level Interface Connectivity for BMS Monitoring


Model

RTHW Series (High Temp)RTHW SeriesRTHW Series (60Hz)

Application

Domestic Hot Water/Process IndustryDomestic Hot Water/Process Industry
Domestic Hot Water/Process Industry
Refrigerant Type
R134AR407CR407C
*COP (Nominal)
up to 5.0up to 5.2up to 5.1
Rated Outlet Water Temperature
65 °C 61 °C
61 °C
Max. Outlet Water temperature
70 °C (>20 °C Ambient)
65 °C (>20 °C ambient)
65 °C (>20 °C ambient)
Working Ambient Range
0 °C - 46 °C
0 °C - 46 °C
0 °C - 46 °C
DefrostHot Gas Injection

Hot Gas Injection

Hot Gas Injection
**Heating Capacity Range20-183 kW (standard models)10-136 kW (standard models)30-65 kW (standar models)


**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out

**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out

**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out


**Higher heating capacity available (up to 307 kW)

**Higher heating capacity available (up to 549 kW)

**Higher heating capacity available

Model

RTWW Series (High Temp)RTWW Series

Application

Domestic Hot Water/Process IndustryDomestic Hot Water/Process Industry
Refrigerant Type
R134AR407C
*Heating COP (Nominal)
up to 5.3up to 5.3

*Cooling EER (Nominal)

up to 4.3up to 4.3

Rated Outlet Water Temperature

65°C
55°C

Max. Outlet Water Temperature

70°C
61°C

Working Source Inlet Range

10°C-35°C

10°C-35°C

Defrost

Hot Gas Injection

Hot Gas Injection

**Heating Capacity Range

33-176 kW (Standard Models)

23-128 kW (Standard Models)


*Rating conditions: Heating 39°C water in, 45°C water out, Cooling 20°C water in, 15°C water out.

*Rating conditions: Heating 39°C water in, 45°C water out, Cooling 20°C water in, 15°C water out.


**Higher heating capacity available (up to 352 kW)

**Higher heating capacity available

  • 5 Years Warranty Against Tank Leak
  • 1 Years Warranty Heating Element
  • 1 Years Warranty Parts & Labour


​​​Warranty Registration​

Abadi Sport Center
Bandung
Alila Hotel SCBD
Jakarta
Pullman Hotel
Jakarta
 Kotta Go
Jogjakarta
B Fashion
Jakarta
 Hilton Hotel
Bandung
