Casing aluminium Marine Grade
Rheem IQ - Intelligently monitor all critical temperature and pressure points
High COP up to 5.2
Titanium Heat Exchanger options to guard against aggresive water quality
Rheem Cote
anti corrosion treatment to provide ultra protection to evaporator
Rheem Cote
anti corrosion treatment to provide ultra protection to evaporator
Marine Grade aluminium case
Rheem IQ - intelligently monitor all critical temperature and pressure points
High COP up to 5.2
Titanium Heat Exchanger options to guard against aggresive water quality



apa itu heat pump


Air to Water
heat pump


Air To Water Heat Pump mengambil panas dari udara sekitar melalui refrigerant untuk memanaskan air dengan efisien. Prinsip kerja seperti pendingin udara yang dibalik. Dingin dibuang, panas dialirkan ke air Anda. Di negara ASEAN dengan suhu minimal 25°C, Air To Water Heat Pump mencapai efisiensi tinggi (COP ≥ 25). Artinya, lebih sedikit listrik yang dibutuhkan untuk air panas Anda





/




apa itu heat pump


Water to Water
heat pump


Water to Water Heat Pump memanfaatkan air industri yang umumnya berasal dari pendingin atau menara pendingin gedung. Sistem ini menggunakan energi terbuang dari peralatan lain untuk menghasilkan panas air secara efisien




/



Aplikasi

Aplikasi

  • Hotel

  • Kolam

  • Apartment

  • Dapur

  • Pabrik

  • Laundri


white washer and dryer laundry centers on white floor tiles
turned on Hotel LED signage
white and red train in a train station
green leafed plant near white concrete post
low angle photo of high rise apartment building
men's blue T-shirt





Tangguh



  • Manufactured In Australia
  • Marine Grade aluminium case
  • Rheem Cote anti-corrosion treatment to provide ultra-protection to evaporator
  • Isolated compressor compartment to avoid contact with rain water
  • Titanium heat exchanger options to guard against aggressive water quality





High Efficiency

​

  • High COP up to 5.2
  • High EER up to 4.2
  • Oversized evaporator for maximum heat capture
  • Intelligent circulation pump control





Easy Integration

​

  • Intelligent weatherproof controller with LED display
  • Easy temp and pressure monitoring
  • Multiple operation scheduler control
  • High level interfacing
  • for BMS – BACnet - Modbus

Rheem IQ

Intelligently monitor all critical temperature and pressure points





Multiple Safety Protection And Error Codes Indication

Better Energy Cost Savings
High Level Interface Connectivity for BMS Monitoring


Model

RTHW Series (High Temp)RTHW SeriesRTHW Series (60Hz)

Application

Domestic Hot Water/Process IndustryDomestic Hot Water/Process Industry
Domestic Hot Water/Process Industry
Refrigerant Type
R134AR407CR407C
*COP (Nominal)
up to 5.0up to 5.2up to 5.1
Rated Outlet Water Temperature
65 °C 61 °C
61 °C
Max. Outlet Water temperature
70 °C (>20 °C Ambient)
65 °C (>20 °C ambient)
65 °C (>20 °C ambient)
Working Ambient Range
0 °C - 46 °C
0 °C - 46 °C
0 °C - 46 °C
DefrostHot Gas Injection

Hot Gas Injection

Hot Gas Injection
**Heating Capacity Range20-183 kW (standard models)10-136 kW (standard models)30-65 kW (standar models)


**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out

**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out

**Rating conditions: 30°C ambient, 60% RH, 39°C water in, 45°C water out


**Higher heating capacity available (up to 307 kW)

**Higher heating capacity available (up to 549 kW)

**Higher heating capacity available

Model

RTWW Series (High Temp)RTWW Series

Application

Domestic Hot Water/Process IndustryDomestic Hot Water/Process Industry
Refrigerant Type
R134AR407C
*Heating COP (Nominal)
up to 5.3up to 5.3

*Cooling EER (Nominal)

up to 4.3up to 4.3

Rated Outlet Water Temperature

65°C
55°C

Max. Outlet Water Temperature

70°C
61°C

Working Source Inlet Range

10°C-35°C

10°C-35°C

Defrost

Hot Gas Injection

Hot Gas Injection

**Heating Capacity Range

33-176 kW (Standard Models)

23-128 kW (Standard Models)


*Rating conditions: Heating 39°C water in, 45°C water out, Cooling 20°C water in, 15°C water out.

*Rating conditions: Heating 39°C water in, 45°C water out, Cooling 20°C water in, 15°C water out.


**Higher heating capacity available (up to 352 kW)

**Higher heating capacity available

  • 5 Years Warranty Against Tank Leak
  • 1 Years Warranty Heating Element
  • 1 Years Warranty Parts & Labour


​​​Warranty Registration​

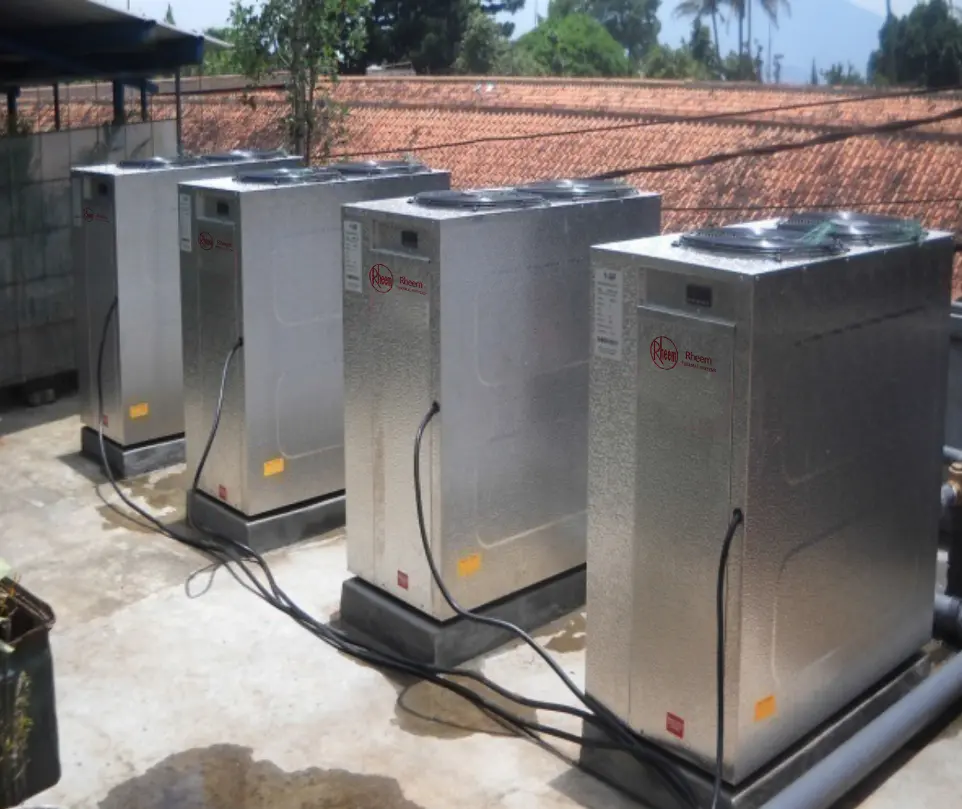

Abadi Sport Center
Bandung

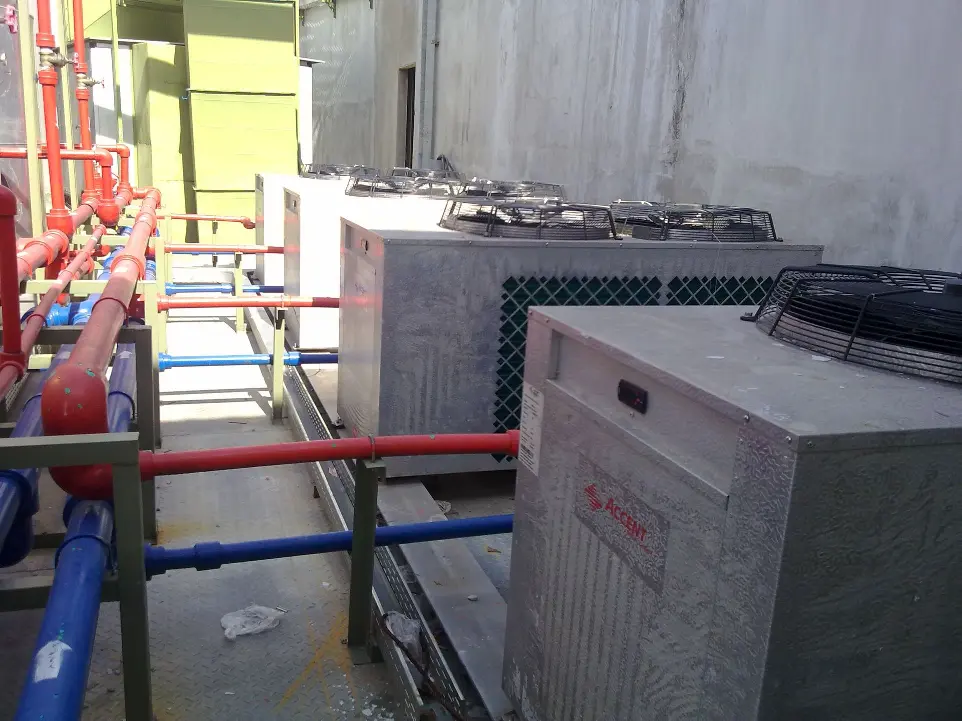

Alila Hotel SCBD
Jakarta
Pullman Hotel
Jakarta

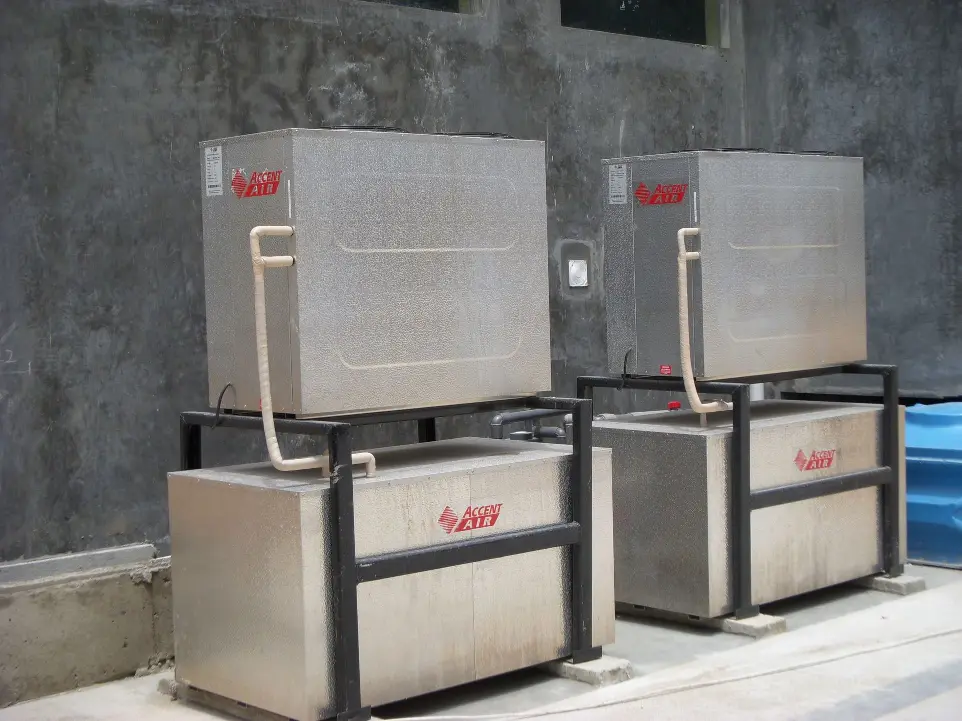

 Kotta Go
Jogjakarta

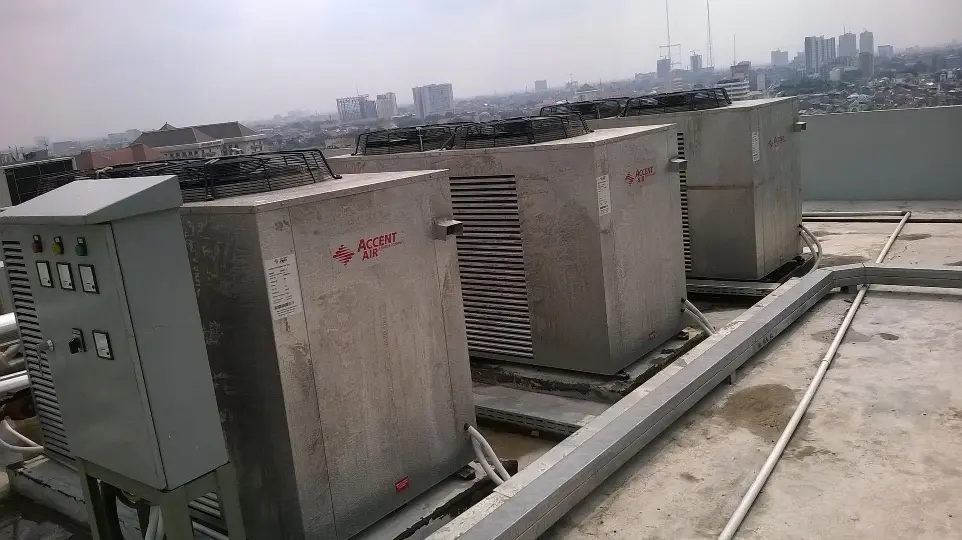

B Fashion
Jakarta

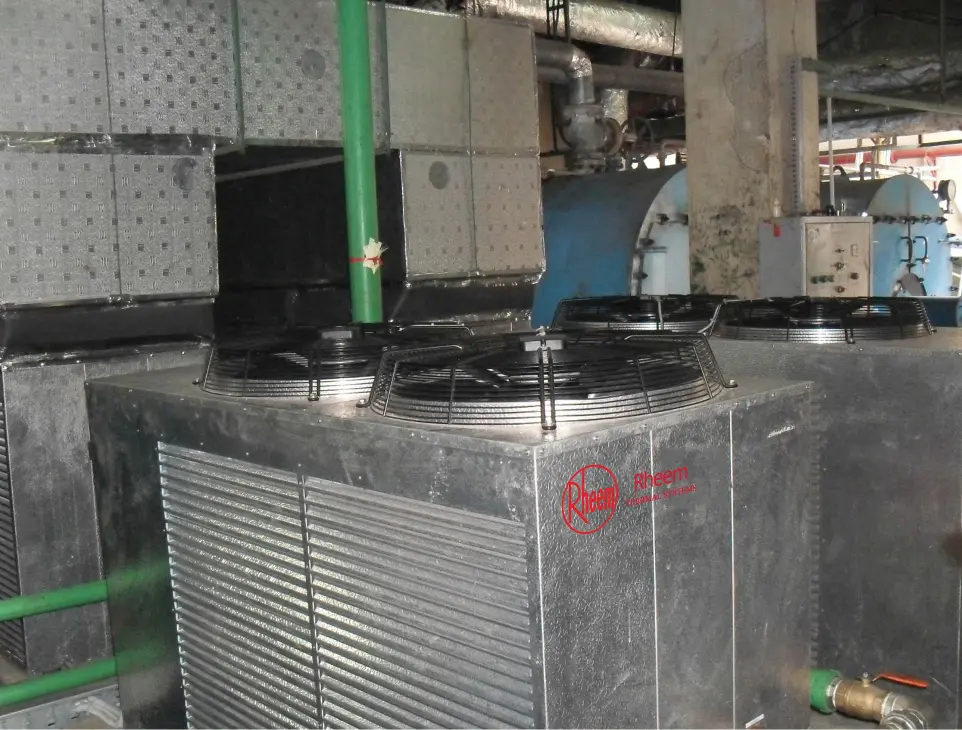

 Hilton Hotel
Bandung
